CAL: 01
Keycaps
The surface your fingers read. Sculpted at a 7° tilt, legends printed, warm gray to match the case.
18.1 MM · TILT 7.0°
Mechanical Keyboard · TKL
Five layers.
One press.
The T-01 — a tenkeyless board, taken apart. Hot-swap switches, a wireless circuit, and a case that damps every press.
LayoutTKL · 87
SwitchHot-swap
Link2.4G + BT
Hot-swap · Wireless · Damped
Illustrative exploded view
INDEX // 001
Anatomy
Five layers,
top to bottom
Every part of the T-01, in the order it sits when the board is closed. Pull one layer and the rest falls into place.
CAL: 02
Switches
The mechanism. Hot-swap sockets, red stems, no solder — pull a switch, drop in another.
Hot-swap · Red stem
CAL: 03
Plate
The skeleton. A milled metal grid that holds every switch in line and keeps the board rigid.
Metal · Milled grid
CAL: 04
PCB
The circuit. Hot-swap sockets, a 2.4 GHz radio, and the battery that makes the board wireless.
2.4G + BT · Battery
CAL: 05
Case
The shell. Foam-damped, rubber feet, a mode toggle, and a port for when the battery runs out.
Damped · USB-C
Spec
The numbers
Layout
TKL · 87 keys
Switch
Hot-swap
Link
2.4G + BT
Power
Battery · USB-C
Keycap
18.1 mm · 7.0°
Plate
Metal
Case
Damped
Media
Dedicated row
Made
Taken apart,
layer by layer

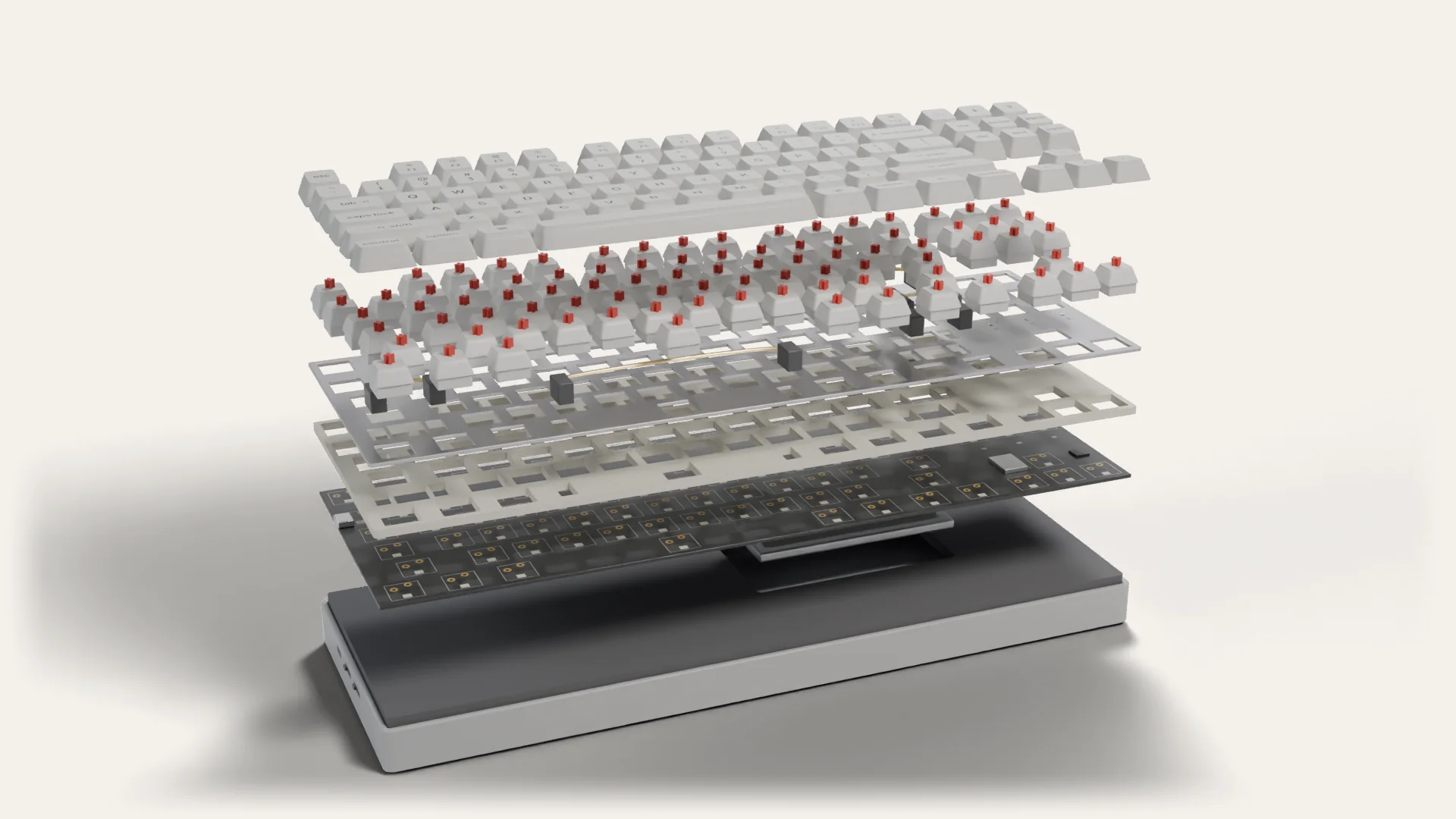

The T-01, exploded — five layers, top to bottom
An illustrative exploded view, rendered from a build file — not a photograph of a physical product. The board is a tenkeyless, hot-swap, wireless mechanical keyboard.
